We are your competent manufacturer of ULTRA X moisture analysers

ULTRA X laboratory instruments – moisture balance, moisture tester for gypsum, moisture meter with high temperature, incinerator.

Moisture analysis of solids and liquids from temperatures of 40 – 600 °C.

Substances can be dried and weighed at the same time using the highest technical standards for special requirements.

The device for thermogravimetrically measuring moisture is simply a radiant heater placed above a set of scales which displays the weight of solid matter once the moisture has evaporated – a moisture analyser.

In 1950, August Gronert, founder of the ULTRA X company, invented the moisture analysers which function according to this principle. These devices were patented worldwide for many decades and have undergone continuous development up to the present day. More accurate scales, as well as advanced controls and user-friendly drying and operating software are among some of the developments in the special device product range still being extended today.

Since 2001, a&p instruments has been involved in developing the ULTRA X line of products. The inventor’s granddaughter is also head of the company’s technical department which means a&p has the required expertise.

Browse the shop
a&p instruments | Moisture analyser ULTRA X 3011HQ

MOISTURE ANALYSERS

a&p instruments | Moisture analyser ULTRA X 3011HQa&p instruments | Moisture analyser ULTRA X 3011HQ

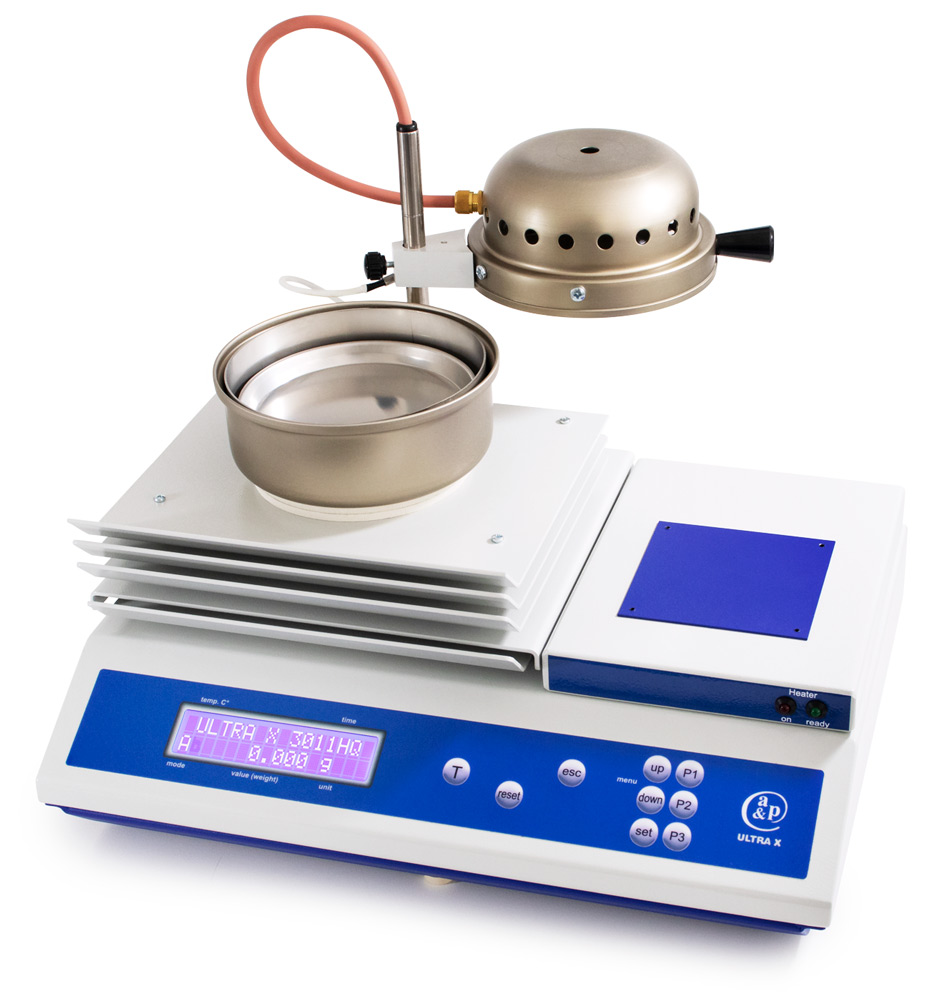

Moisture analyser ULTRA X 3011HQ

ULTRA X 3011HQ

Rugged and accurate sampling for very high temperature. Suitable for laboratory and production application. A micro processor controlled weight loss dehydration method of moisture analysis offers a truly accurate and efficient result. This process uses infrared drying and continuous weight loss measurement.

The ULTRA X 3011HQ is equipped with a quartz heater to dry out the moisture with a very high temperature up to 600 °C. All pre-selectable parameters are indicated on the clear LCD-display.

Beside the moisture 5 further data can be calculated, monitored and displayed. The final value of a measurement can be evaluated in two different ways: either by an automatic and product depending stop drying function „KonstaStop“ or via timer.

Further highlights are:

  • continuous costs savings through reusable stainless steel bowls
  • standard interface V24/RS 232
  • additional special accessories such as integrated or separate printers
  • software „DataChannel“ for Microsoft Excel and many more are available

The main criteria for this development have been the following:

  • easy handling
  • practice-orientated
  • robust execution



Download PDF






Almost 70 years of experience with innovative technology forms the basis for the ULTRA X moisture analyser. Precision weighing technology, simple operation, good functionality and design and a robust structure are combined in a practice-oriented manner.






How can we help you?

Call us at +49 5232 97780 or send an e-mail to info@apinstruments.de

a&p instruments | Moisture analyser ULTRA X 3031Da&p instruments | Moisture analyser ULTRA X 3031D

Moisture analyser ULTRA X 3031D

ULTRA X 3031D

Rugged and accurate sampling for gypsum and materials with requirements of free and bound moisture. Suitable for laboratory and production application. A micro processor controlled weight loss dehydration method of moisture analysis offers a truly accurate and efficient result. This process uses infrared drying and continuous weight loss measurement.

The ULTRA X 3031 is equipped with an infrared (bright) heater and a quartz (dark) heater to dry out the moisture and the crystal moisture. All pre-selectable parameters are indicated on the clear LCD-display.

Beside the moisture 5 further data can be calculated, monitored and displayed. The final value of a measurement can be evaluated in two different ways: either by an automatic and product depending stop drying function „KonstaStop“ or via timer.

Further highlights are:

  • the pre-heating mode “Pre-Flash” for very moist materials
  • sensitivity adjustment for the scale depending on the ambient conditions
  • continuous cost savings through reusable stainless-steel bowls
  • standard interface V24 / RS 232
  • additional special accessories such as integrated or separate printers
  • software „DataChannel“ for Microsoft Excel and many more are available

The main criteria for this development have been the following:

  • easy handling
  • practice-orientated
  • robust execution



Download PDF






Almost 70 years of experience with innovative technology forms the basis for the ULTRA X moisture analyser. Precision weighing technology, simple operation, good functionality and design and a robust structure are combined in a practice-oriented manner.






How can we help you?

Call us at +49 5232 97780 or send an e-mail to info@apinstruments.de

a&p instruments | Moisture analyser ULTRA X 3081WQa&p instruments | Moisture analyser ULTRA X 3081WQ

Moisture analyser ULTRA X 3081WQ

ULTRA X 3081

The UX 3081 moisture analyser is a special instrument for measuring moisture in most liquid and solid substances and materials. The operating principle is that substances are dried and weighed at the same time. The weight loss is shown in %. In order to achieve reproducible results for light-weight and bulky materials, the UX 3081 was designed with an XXL drying tray for the relevant batch quantities.

The UX 3081WQ can be used to measure samples e.g. brass chips at up to around 360 °C. It is also possible to measure samples weighing up to 700 g and with a volume of 485 cm³.

A separate printer is available for the UX 3081/ UX 3081WQ.

All data and parameters including date and time are also output via the RS 232 interface in accordance with GLP.



Download PDF






Almost 70 years of experience with innovative technology forms the basis for the ULTRA X moisture analyser. Precision weighing technology, simple operation, good functionality and design and a robust structure are combined in a practice-oriented manner.






How can we help you?

Call us at +49 5232 97780 or send an e-mail to info@apinstruments.de

MORE INSTRUMENTS

a&p instruments | ULTRA X Printer UX 3092

Printer ULTRA X 3093

Printer ULTRA X 3093

The ULTRA X printer is specially designed for ULTRA X moisture analysers. It is simply connected to the interface and works just like the built-in printer.






Almost 70 years of experience with innovative technology forms the basis for the ULTRA X moisture analyser. Precision weighing technology, simple operation, good functionality and design and a robust structure are combined in a practice-oriented manner.






How can we help you?

Call us at +49 5232 97780 or send an e-mail to info@apinstruments.de

a&p instruments | Incinerator ULTRA X 052a&p instruments | Rapid incinerator ULTRA X 052

Incinerator ULTRA X 052

Incinerator ULTRA X 052

Rapid incinerator for individual samples up to 610 °C, an inexpensive alternative to the high-temperature furnace, for incinerating all materials and determining the ash content, organic substances and the residue on ignition.

The operating temperature of max. approx. 610 °C is preselected via the menu. 2 heating levels with different heating power and times can be set. Depending on the type of material to be burned, the typical ashing time of a 5 g sample is generally between 8 and 15 minutes.

The ashtray ULTRA X 052 has electronics with an LCD display and 4 pushbuttons for going through the menu and setting the heating levels.
The set time is shown on the display. A control lamp automatically switches the device to the 2nd heating level. After the entire time has elapsed, a signal sounds and the heater is switched off.






Almost 70 years of experience with innovative technology forms the basis for the ULTRA X moisture analyser. Precision weighing technology, simple operation, good functionality and design and a robust structure are combined in a practice-oriented manner.






How can we help you?

Call us at +49 5232 97780 or send an e-mail to info@apinstruments.de

a&p instruments | Software ULTRA X DataChannel

Software ULTRA X DataChannel 5.07

Software ULTRA X DataChannel

For ULTRA X moisture analysers of the UX3001 and UX2001 series.

The ULTRA X DataChannel reads the results of your moisture measurements on the serial interface of the ULTRA X moisture analyser and transmits these measured values optionally in the file format .xls; .html; .xml; .txt to the PC.






Almost 70 years of experience with innovative technology forms the basis for the ULTRA X moisture analyser. Precision weighing technology, simple operation, good functionality and design and a robust structure are combined in a practice-oriented manner.






How can we help you?

Call us at +49 5232 97780 or send an e-mail to <ahref=”mailto:info@apinstruments.de”>info@apinstruments.de

SPARE PARTS AND ACCESSORIES

a&p instruments | Foil press, rounda&p instruments | Foil press, round

Foil press round

Foil press round

The ULTRA X foil press is used to form aluminum trays suitable for all ULTRA X devices, but also for all other manufacturers.

23 mm high shells with a diameter of 85 / 95 mm can be formed from aluminum foil with a diameter of 130 mm.

With the ULTRA X stainless steel drying tray, the aluminum foils are shaped to a diameter of approx. 110 mm. The edge height corresponds approximately to the bowl edge.






Almost 70 years of experience with innovative technology forms the basis for the ULTRA X moisture analyser. Precision weighing technology, simple operation, good functionality and design and a robust structure are combined in a practice-oriented manner.






How can we help you?

Call us at +49 5232 97780 or send an e-mail to info@apinstruments.de

a&p instruments | Quartz radiator for UX 051 / 052a&p instruments | Quartz radiator for UX 051 / 052

Quartz radiator for UX 051 / 052 (375 W)

Quartz radiator (375 W)

For UX 051 / 052






Almost 70 years of experience with innovative technology forms the basis for the ULTRA X moisture analyser. Precision weighing technology, simple operation, good functionality and design and a robust structure are combined in a practice-oriented manner.






How can we help you?

Call us at +49 5232 97780 or send an e-mail to info@apinstruments.de

a&p instruments | Calibration weight 200 g

Calibration weight 200 g

Calibration weight 200 g






Almost 70 years of experience with innovative technology forms the basis for the ULTRA X moisture analyser. Precision weighing technology, simple operation, good functionality and design and a robust structure are combined in a practice-oriented manner.






How can we help you?

Call us at +49 5232 97780 or send an e-mail to info@apinstruments.de

Extensive range of application areas

We are your competent manufacturer of ULTRA X laboratory instruments. In addition to the standard device, the ULTRA X 3011, we also provide special ULTRA X moisture tester models for different requirements tailored to meet specific individual demands. These mainly include the following tried-and-tested devices:

ULTRA X 3031 for testing gypsum with an infrared heater from 40 °C – 180 °C and quartz heater up to 360 °C.
ULTRA X 3081WQ up to 360 °C for determining the pure metal content of e.g. brass chips.
ULTRA X 3011Q and ULTRA X 3011HQ up to 600 °C for determining other substances where extremely high temperatures are required.
ULTRA X 3081 also available with larger weighing capacity e.g. for synthetic granulate, wood chips, grasses, silage etc., with a stainless steel drying bowl 245 x 120 mm.

Easy to operate
Weigh the sample and position the heater over it – the device starts to measure automatically and stops when a constant weight has been reached. The final value is displayed in %. This method is widely accepted as an alternative to the oven drying method and considerably shortens processing times. The ULTRA X moisture analyser means that measurements only take a few minutes. The integrated printer, the ULTRA X 3092, prints out all parameters in line with GLP requirements.

Read more…

Major advantages

  • Metal casing: heat, impact, scratch and EMI resistant
  • Low-cost through reusable stainless steel bowls
  • Robust, accurate, user-friendly, excellent value for money

Individual accessories

  • DataChannel software for transferring data to a PC
  • Aluminium foils, foil press

Key technical data

  • Sample mass up to 400 g
  • Weighing capacities up to 95 cm³ or 485 cm³
  • Accuracy 0,00 g / 0.01%

Ash residue analysis
Moisture testing together with the ULTRA X 052 rapid incinerator for incinerating individual samples of organic substances. Two adjustable heat settings. Temperatures of up to 600 °C.

We present: Moisture analyser ULTRA X 3081WQ

Less is more

For monitoring metal swarf. This machine can be used to determine pure metal content.
A sample of up to 220 g is weighed and heated to around 300 °C, so that grease, cooling fluid or added substances are burnt off. The weight reduction or alternatively the metal residue is shown in %.

For years, many well-known companies have been successfully using the ULTRA X 3081WQ around the world.
